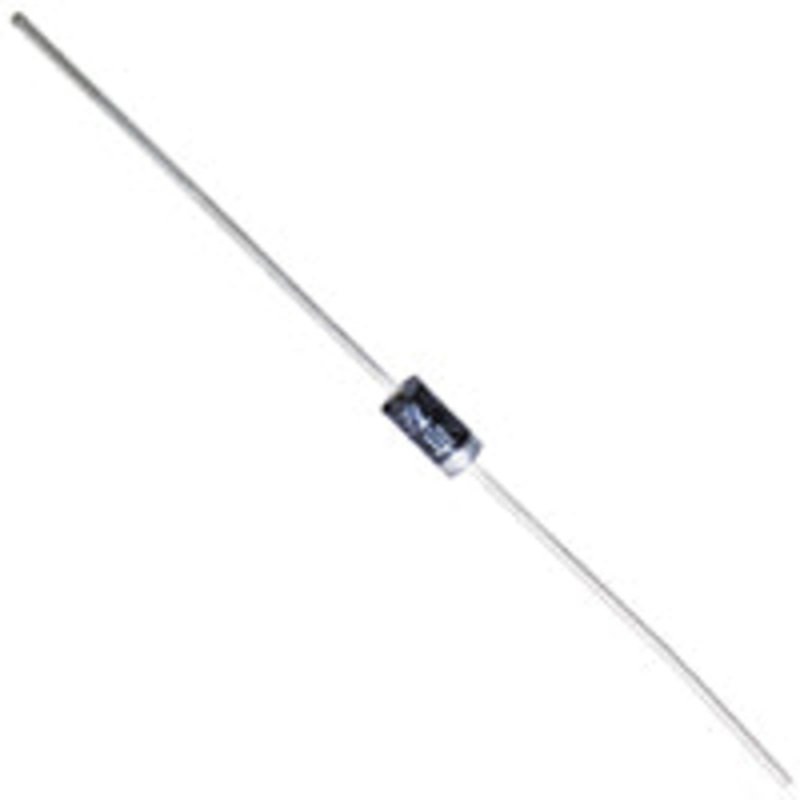

140V 1W Zener Diode High Voltage Regulation, DO-35 Package

Reliable 140V 1W Zener Diode for Precision Voltage Regulation

This 140V 1W Zener diode provides stable voltage regulation in demanding electronic applications. Designed with an axial lead, DO-35 package for easy through-hole mounting, it is suitable for use in precision voltage reference, circuit protection, and overvoltage suppression designs.

Key Features and Technical Data

• Nominal regulating voltage: 140.0V
• Maximum power dissipation: 1 Watt
• Package: DO-35 (Axial lead, through-hole)
• Quantity per package: 1
• Part Number: NTE5099A

Typical Applications

• Voltage regulation for sensitive circuits
• Overvoltage and surge suppression
• Reference voltage for instrumentation
• Clipping and clamping circuits

Usage Instructions

Install the 140V 1W Zener diode in the desired circuit location, ensuring correct polarity for optimal voltage regulation. Suitable for through-hole assembly and compatible with standard axial lead mounting techniques.

This part is the equivalent replacement for the following:

103-279-54, 13-0033179-001, 13-33179-1, 13-33182-8, 179-1(SYL), 1EZ140D, 1EZ140D10, 1EZ140D5, 1M1140Z5, 1M140Z, 1M140Z10, 1M140Z5, 1M140ZS10, 1M140ZS5, 1M14OZ, 1N5891, 1N5891A, 1R140, 1R140A, 1R140B, 1R14OB, 1S1756, 1S260, 1WB-140D, 1Z140, 253-1(MAG-ZENER), .25T140, 530073-1025, 530253-1, 5302531001, 72165-5, .7JZ140, .7Z140, .7Z140A, .7Z140B, .7Z140C, .7Z140D, .7ZM140, .7ZM140A, .7ZM140B, .7ZM140C, .7ZM140D, CH5275, CXL5054, CXL5099, ECG5099, ECG5099A, EE5A-140, ELP140, GEZD-140, GXI140, GZ1-140, HEP-Z0255, LZZ1-140, MEZ1-140, NTE5099A, S5275B, SK140V, SK140V/5099A, SK3349, SK3349/5099A, TM5099, TM5099A, UZ1-140, UZ8114, UZ8214, UZL-140, WEP1183, Z0255, Z10-140, Z140, ZC-140(140V.ZENER), ZEN514
