140V 5W Zener Diode – High Voltage, Through-Hole

Reliable 140 Volt 5 Watt Zener Diode for Voltage Regulation

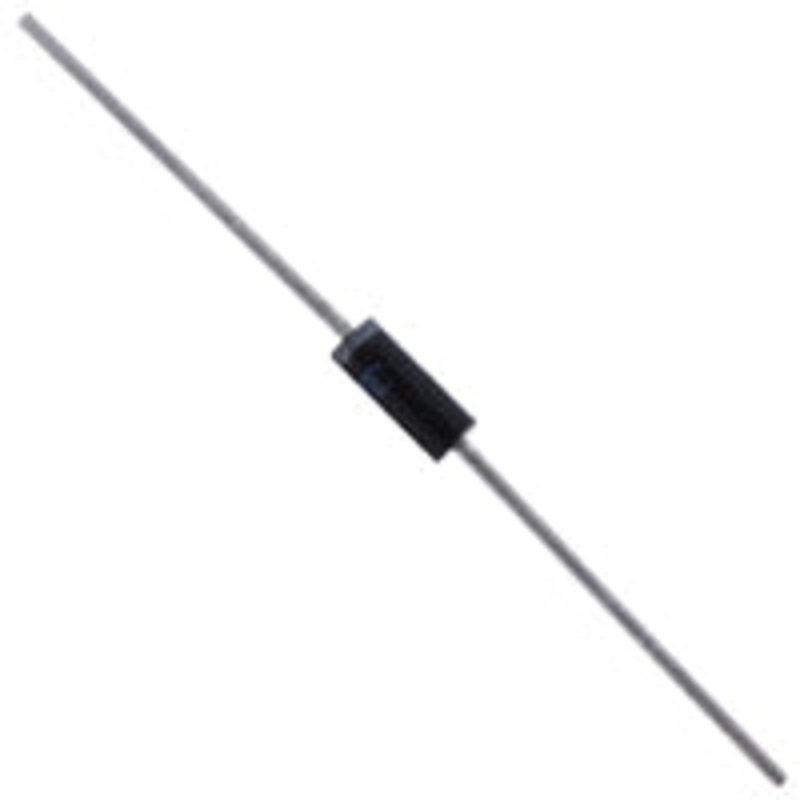

The NTE5160A 140V 5W Zener Diode is engineered for high voltage regulation and over-voltage protection in demanding electronic circuits. Designed with a robust 5 watt power rating, this axial lead, through-hole zener diode offers stable performance and reliable operation in both commercial and industrial applications.

Technical Specifications: 5W 140V Zener Diode

• Nominal Zener Voltage: 140V
• Power Dissipation: 5 Watts
• Diode Type: Zener Diode, Through-Hole, Axial Lead
• Package Quantity: 1 per package
• Part Number: NTE5160A

Applications for the NTE5160A 140V Zener Diode

• High voltage stabilization and regulation circuits
• Power supply over-voltage crowbar protection
• Voltage reference in instrumentation and measurement systems
• Protection of sensitive electronic components

Key Features of This High Voltage Zener Diode

• Precise 140V nominal regulating voltage for accurate voltage control
• 5W high power dissipation capability supports demanding applications
• Axial lead through-hole mounting for easy installation and circuit integration

Usage and Installation

To maintain optimal performance, install the 140V 5W zener diode in accordance with your circuits specified orientation. Ensure adequate heat dissipation by following standard PCB design practices for high power components.

This part is the equivalent replacement for the following:

103-238, 1.5BZ140B, 1.5E140, 1.5JZ140, 1.5JZ140A, 1.5JZ140C, 1.5JZ140D, 1.5M140Z, 1.5R140, 1.5R140A, 1.5R140B, 1.5Z140, 1.5Z140A, 1.5Z140B, 1.5Z140C, 1.5Z140D, 1N3130, 1N5099, 1N5126, 1N5382, 1N5382A, 1N5382B, 1N5382BE, 299D13101, 2EZ140D5, 2R140, 2R140A, 2R140B, 3EZ140D5, 3R140, 3TZ140, 3TZ140A, 3TZ140B, 3TZ140C, 3TZ140D, 5M140ZS5, 5Z140, 919-017406-049, CXL5160, CZ5382B, ECG5160, ECG5160A, LMZ140, LMZ140-20, LMZ140A, LMZX140, LMZX140A, MZ114, MZ314, MZ5114, NTE5160A, SK140X, SK140X/5160A, SK3426, SK3426/5160A, SL3426, TM5160, TM5160A, TZ140B, UZ114, UZ214, UZ314, UZ5114, UZ5214, UZ5314, WEP1659, ZBC140, ZBC140A, ZBC140B, ZC140A, ZC140B, ZCC140, ZCC140A, ZCC140B, ZGP10-140, ZGP10-140A, ZGP10-140B
