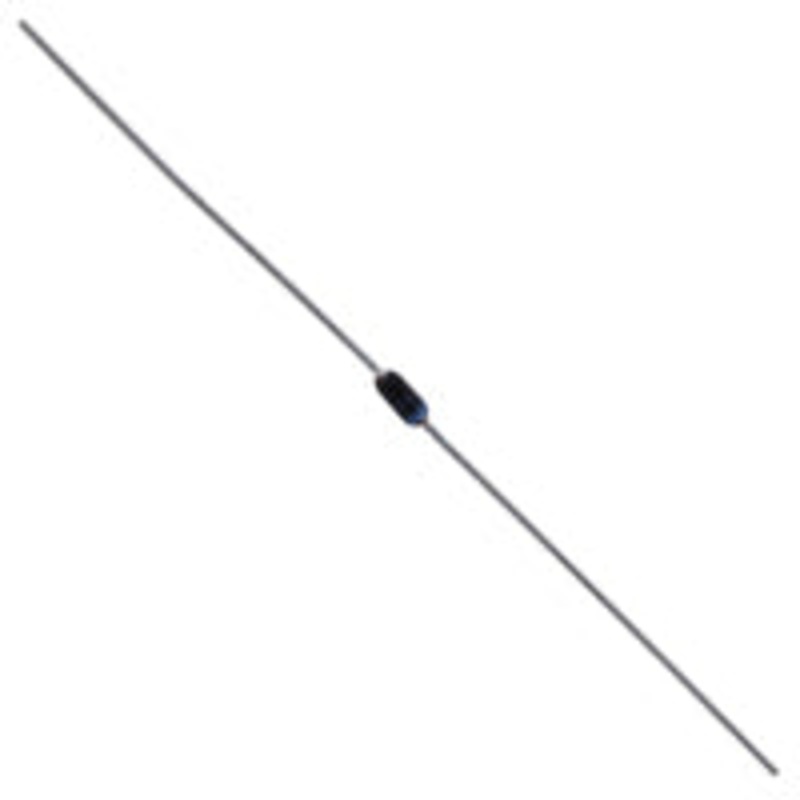

180V 1/2W Zener Diode DO-35 Through-Hole

Reliable 180V 0.5W Zener Diode for Voltage Regulation

Achieve precise voltage regulation in your circuits with this 180V 1/2 watt Zener diode. Engineered for robust and stable performance, this through-hole Zener diode is suited for a wide range of electronic applications requiring high voltage control and reliable circuit protection.

Key Features and Technical Specifications

• Nominal Zener (Regulating) Voltage: 180V
• Power Dissipation: 0.5W (1/2 watt)
• Package: DO-35 (Axial, through-hole)
• Quantity: 1 per package
• Former Part Number: NTE5058A

Applications for the 180V Zener Diode (NTE5058A)

This 180V Zener diode is utilized in voltage regulation, overvoltage protection, and precision reference circuits. It is ideal for use in power supply designs, high-voltage circuit protection, signal clipping, and waveform shaping in professional and industrial electronic systems. The axial DO-35 package ensures straightforward PCB mounting and reliable performance in demanding environments.

Usage and Installation

To incorporate the NTE5058A Zener diode into your circuit, install it in reverse-bias orientation across the section requiring voltage regulation. Consult reference designs to confirm optimal voltage stabilization and ensure dissipation remains within the 0.5W (1/2 watt) limit. The high nominal Zener voltage makes this device well-suited for series and shunt regulator configurations in precision equipment requiring high-voltage stability.

Choose Quality Zener Diodes for Your High-Voltage Designs

Rely on this 180V 1/2 watt Zener diode for consistent regulation, stable reference voltage, and longevity in any demanding electronic application. Every device is individually packaged and ready for integration into your next high-performance project.

This part is the equivalent replacement for the following:

1/4M180, 1/4M180Z, 1/4M180Z10, 1/4M180Z5, 1/4Z180D, 1/4Z180D10, 1/4Z180D5, 152-0289-00, 157-181(MAG-ZENER), 1N1947, 1N1947A, 1N1974, 1N2001, 1N2001A, 1N2001B, 1N3431, 1N5279, 1N5279A, 1N5279B, 1N5895, 1N5895A, 1N5895B, 1N6030A, 1N6030B, 1N744, 1N744A, 1N744B, 1N991, 1N991A, 1N991N, .25T180B, .4M180Z, .4M180Z5, 530157-181, .5M180ZS10, .5M180ZS5, BZX55C180, ECG5058, ECG5058A, HM180, HM180A, NTE5058A, SK180A, SK180A/5058A, SK3824, SK3824/5058A, TM5058A, WEP1466
