180V 1W Zener Diode High Voltage Voltage Regulation

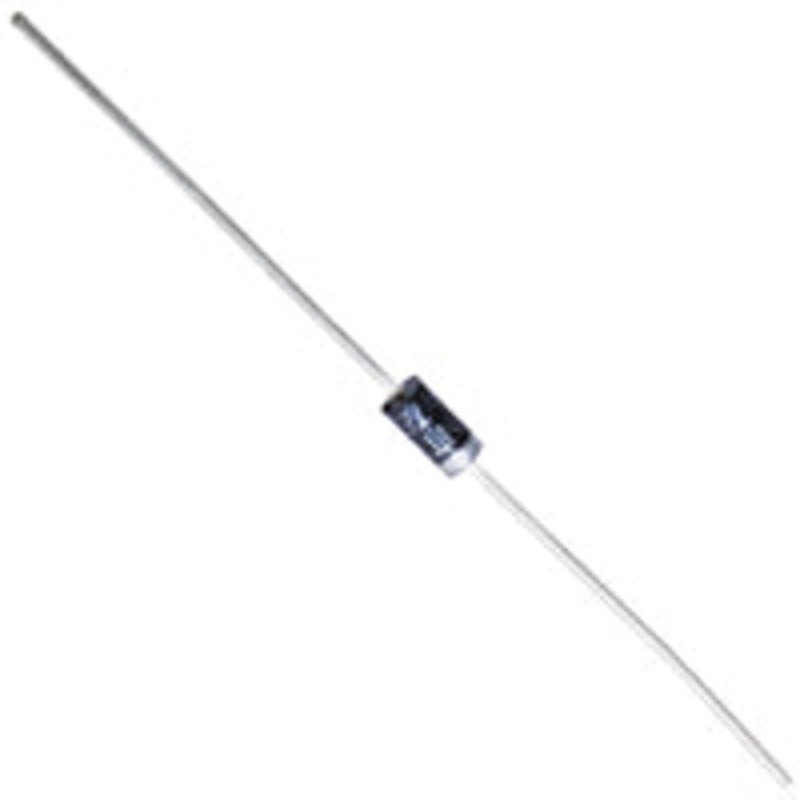

180 Volt, 1 Watt Zener Diode DO-35 Package

This 180V 1W Zener Diode is engineered for precise voltage regulation applications, offering a nominal regulating voltage of 180 volts with a power dissipation rating of 1 watt. Featuring an industry-standard DO-35 through-hole package, this high voltage zener diode is well-suited for electronic circuit protection, voltage reference, and clamping functions in both commercial and industrial designs.

• Nominal Regulating Voltage: 180V
• Power Dissipation: 1 Watt
• Package Type: DO-35 (Axial, through-hole)
• Quantity Per Package: 1
• Part Number: NTE5103A

Reliable High Voltage Zener Diode for Technically Demanding Applications

Designed for consistent and reliable overvoltage protection, the 180 volt zener diode provides stable operation in voltage regulation circuits and high-voltage signal conditioning. The 1 watt power rating makes it well-suited for use as a voltage reference diode, voltage regulator, or for clamping in sensitive electronic systems.

Usage Instructions

Install this 180V 1W zener diode in the desired through-hole position, observing correct polarity as marked by the cathode band. When used as a voltage regulator, the diode should be connected in reverse-bias mode across the target voltage point.

This part is the equivalent replacement for the following:

103-279-58, 126853, 1474777-3, 192-181(MAG-ZENER), 1EZ180D, 1EZ180D10, 1EZ180D5, 1M180Z, 1M180Z10, 1M180Z3, 1M180Z5, 1M180ZS10, 1M180ZS5, 1N1801, 1N1801A, 1N3050, 1N3050A, 1N3050B, 1N3100, 1N3100A, 1N3462, 1N3709, 1N3709A, 1N3709B, 1N4192, 1N4192A, 1N4192B, 1N4357, 1N4357A, 1N4357B, 1N4434, 1N4434A, 1N4434B, 1N5593, 1N5593A, 1N5593B, 1N991B, 1R180, 1R180A, 1R180B, 1S1791, 1S2524, 1S3180, 1TA180, 1TA180A, 1TA180B, 1Z180, 1ZM180T5, 1ZS180A, 1ZT180A, .25T180, .25T180A, 3597526, 48-84209D71, .4T180, .4T180A, .4T180B, 5301921181, 530192-181, 62-21573, 707W00207, .7JZ180, .7Z180, .7Z180A, .7Z180B, .7Z180C, .7Z180D, .7ZM180, .7ZM180A, .7ZM180B, .7ZM180C, .7ZM180D, BZX85C180, CXL5058, CXL5103, ECG5103, ECG5103A, EE5A-180, ELP180, GEZD-180, GXI180, GZ1-180, HEP-Z0444, HEPZ0444, HW180, HW180A, LZZ1-180, MEZ1-180, MZ18B, NT5550, NT55C180, NTE5103A, PL180Z, S5279B, SK180V, SK180V/5103A, SK3353, SK3353/5103A, SZ13456, TM5103A, UZ1-180, UZ8118, UZ8218, UZL-180, VR180, VR180A, VR180B, WEP1140, Z0444(HEP), Z10-180, Z180, Z4B180, ZA180B, ZB180, ZB180A, ZB180B, ZD180, ZD180B, ZH180B, ZPU180, ZY180
