High-Performance 19V 5W Zener Diode (NTE5134A)

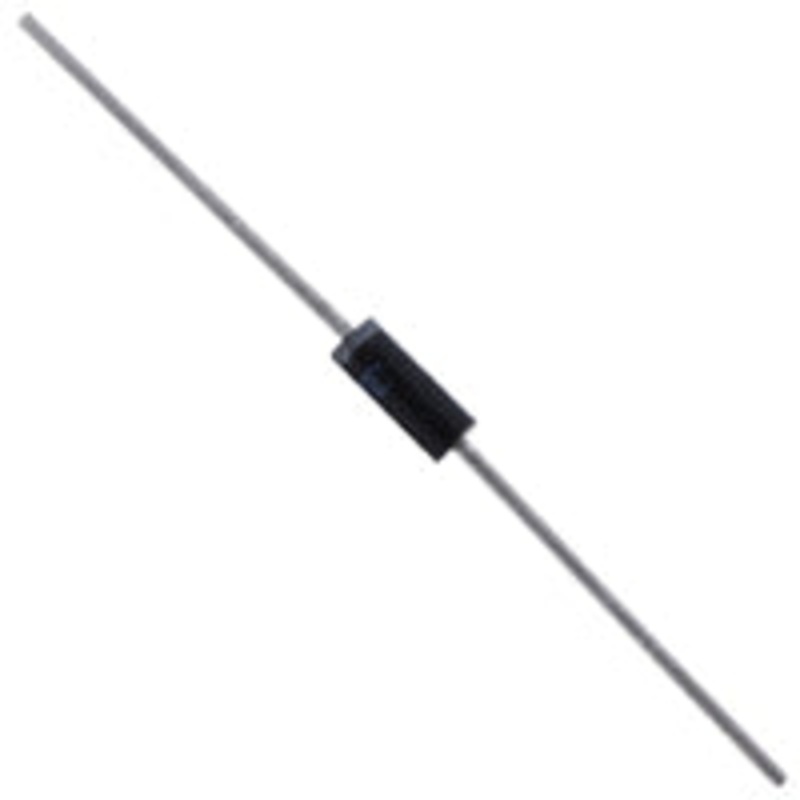

The NTE5134A is a 19.0 Volt, 5 Watt Zener Diode designed for consistent and reliable voltage regulation in demanding electronic circuits. With a through-hole DO-35 package, this voltage regulation diode provides stable performance and is well-suited for both new designs and replacement applications.

Key Features and Specifications

• Nominal Regulating Voltage: 19.0V
• Maximum Power Dissipation: 5 Watts
• Package: DO-35 (through hole)
• Quantity Per Package: 1
• Diode Type: Zener Diode for voltage stabilization and circuit protection

Applications and Usage

• Voltage regulation in power supplies
• Overvoltage protection for sensitive components
• Reference voltage source in electronic circuits
• Clipping and clamping circuits for waveform conditioning

For optimal performance, ensure adequate heat dissipation and avoid exceeding the maximum power rating during operation. The NTE5134A is a reliable choice for engineers and technicians requiring precision and durability in voltage regulation applications.

This part is the equivalent replacement for the following:

1099-6346, 13-3015735-001, 13-3015735-1, 143690, 1477046-014, 1477046-14, 1.5JA19B, 1.5JZ19, 1.5JZ19A, 1.5JZ19B, 1.5JZ19C, 1.5JZ19D, 1.5M19Z, 1.5M19Z10, 1.5Z19, 1.5Z19A, 1.5Z19B, 1.5Z19C, 1.5Z19D, 1N5029, 1N5029A, 1N5356, 1N5356A, 1N5356B, 1N5356BE, 278-1(MAG)(ZENER), 278-1(MAG-ZENER), 2EZ19D5, 3EZ19D5, 3TZ19A, 3TZ19C, 3TZ19D, 4835-130-37186, 483513037186, 530278001, 530278-1, 5302781001, 5M19ZS5, 5ZS19, 5ZS19A, 5ZS19B, 7046-14(RCA), 735-1(SYL-ZENER), 919-017406-028, 935-6346, CXL5134, CZ5356B, ECG5134, ECG5134A, GE5ZD-19, LMZ19, LMZ19-20, LMZ19A, LMZX19, LMZX19A, NTE5134A, SK19X, SK19X/5134A, SK3400, SK3400/5134A, TM5134A, WEP1628, ZBC19, ZBC19A, ZBC19B, ZC19, ZC19A, ZC19B, ZCC19, ZCC19A, ZCC19B
