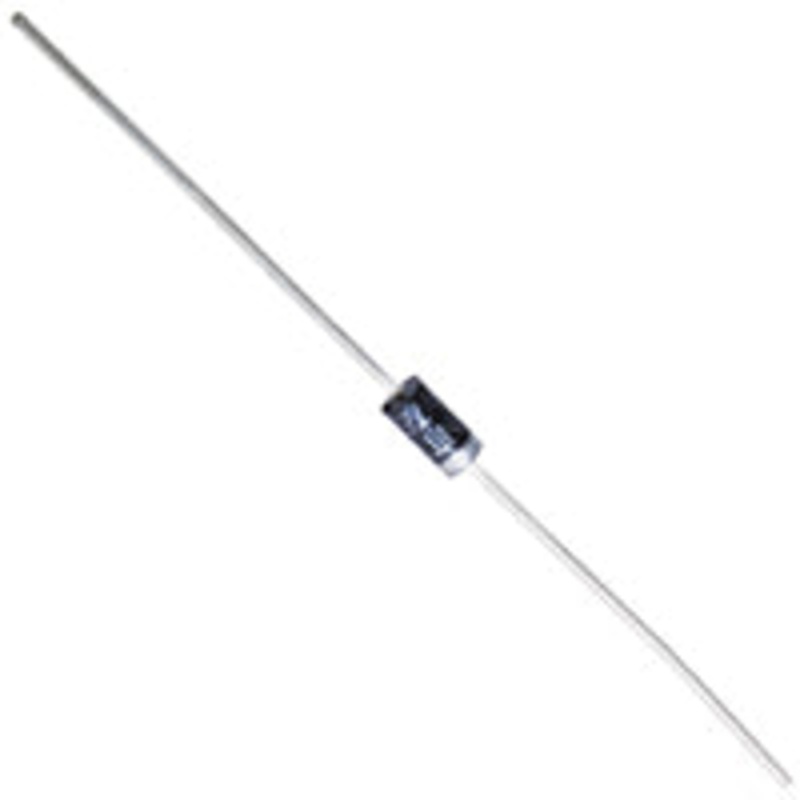

2.4V 1W Zener Diode NTE5061A

Overview

The NTE5061A is a 2.4V 1 watt Zener diode ideal for voltage regulation and circuit protection in a wide range of electronic designs. Housed in a DO-41 through-hole package, this Zener diode is engineered for dependable performance and precise voltage clamping in both commercial and industrial environments.

Technical Specifications

• Part Number: NTE5061A
• Nominal Regulating Voltage (Vz): 2.4 Volts
• Power Dissipation: 1 Watt
• Package Type: DO-41 (Through-Hole)
• Quantity Per Package: 1

Applications

The 2.4V 1W Zener Diode (NTE5061A) is designed for use in:

• Low voltage voltage regulation
• Overvoltage protection circuits
• Waveform clipping and reference circuits
• General-purpose power supplies

Its stable regulating voltage and robust construction make it an excellent choice for circuit designers and engineers seeking reliable protection components.

Features

• Stable nominal Zener voltage for precise regulation
• High 1W power handling capability
• DO-41 package for standard through-hole PCB mounting
• Suitable for both prototyping and series production

Product Details

Each package contains one NTE5061A Zener diode. For additional technical data or to discuss your application requirements, contact our knowledgeable support team.

This part is the equivalent replacement for the following:

1S1952, 1S2479R, CXL5061, ECG5061, ECG5061A, HS12, MLV4370A, NTE5061A, RE95, REN5061, SZ2.4, TM5061, TM5061A, US7082A, WEP1145
