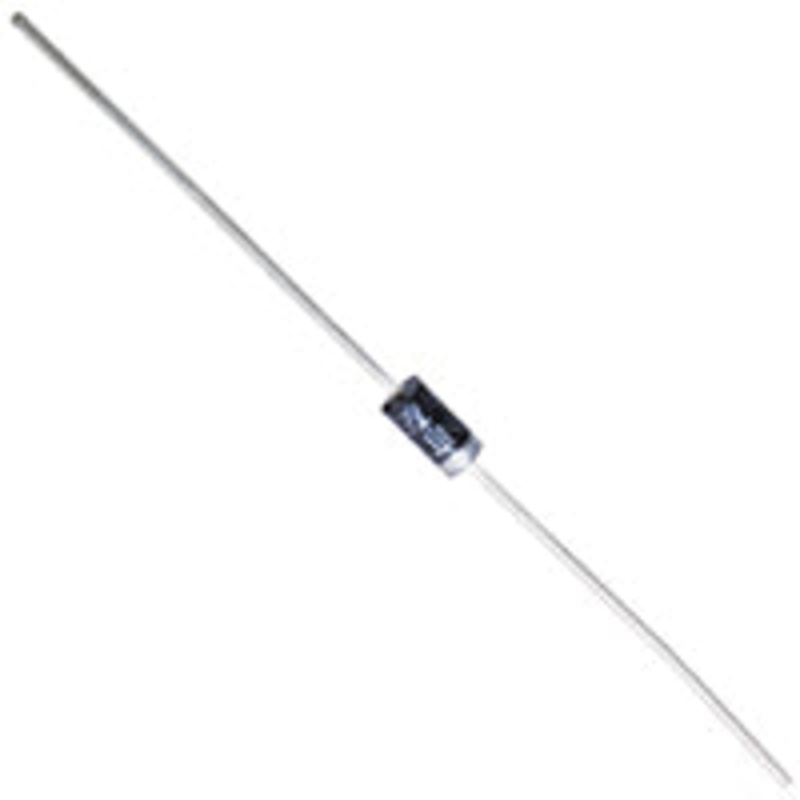

2.7V 1W Zener Diode DO-35, Through-Hole

Reliable 2.7 Volt Voltage Regulation

This 2.7V 1W Zener diode is designed for precision voltage regulation and protection in critical circuit applications. With a nominal regulating voltage of 2.7 volts and a robust 1 watt power dissipation rating, this DO-35 through-hole Zener diode ensures stable operation in a range of applications requiring precise voltage reference points.

Features and Technical Specifications

• Nominal Regulating Voltage: 2.7V
• Power Dissipation: 1W
• Package Type: DO-35 (glass encapsulated, through-hole)
• Quantity Per Package: 1
• Original Part Number: NTE5063A

Applications for 2.7V 1W Zener Diode

• Voltage regulation in linear and switching power supplies
• Reference voltage generation for analog and digital circuits
• Clipping and clamping circuits
• Overvoltage and surge protection for sensitive electronic components

Usage Instructions

This Zener diode is intended for through-hole mounting in printed circuit boards. Install with correct polarity for optimal zener regulation. For best results, use within the specified voltage and power ratings. Proper heat sinking and airflow are recommended when operating close to the maximum dissipation rating.

This part is the equivalent replacement for the following:

029-LA, 1101, 19-090-007, 1N5986B, 1S1402, 1S1402R, 1S2480, 1S2480R, 48D82256C33, 523-2005-279, 56C33, 80968, BZV85C2V7, BZX85C2V7, BZY88C2V7, CXL5063, ECG5063, ECG5063A, GE-5063A, GZB2.7, GZB2.7B, HZ2.7P, HZ2.7PB, HZ5223, MLV4371A, NT5506, NT55C2V7, NT7706, NT77C2V7, NTE5063A, RD2.7FB, RE97, REN5063, SK2V7, SK2V7/5063A, SK3837, SK3837/5063A, SV28, SZ2.7, TM5063A, WEP1147, Z2.75 (Must use the insulating hardware supplied.), ZF2.7 (Minor mechanical difference exists, but device will fit most applications.), ZW2.7
