2.8V 1W Zener Diode DO-41 Through-Hole

High-Reliability Voltage Regulation with 2.8V 1W Zener Diode

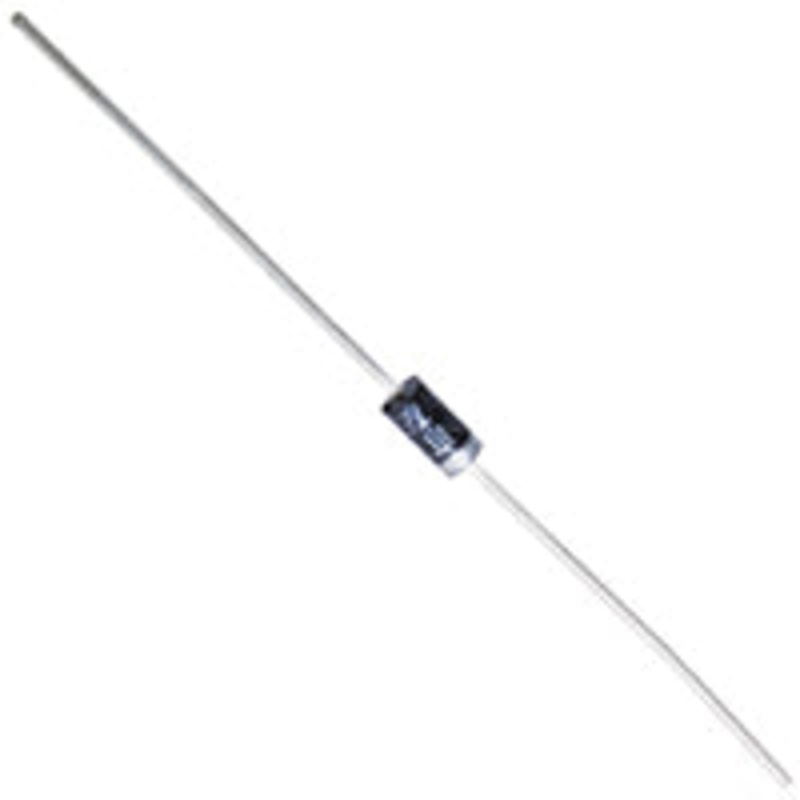

The NTE5064A is a precision 2.8V 1W Zener diode designed for dependable voltage regulation in demanding electronic circuits. Manufactured in a robust DO-41 through-hole package, this Zener diode offers stable nominal regulating voltage, making it a preferred choice for engineers and designers who require consistent performance and high reliability.

Key Features and Specifications

• Nominal Zener Voltage: 2.8 Volts
• Power Rating: 1 Watt
• Package Type: DO-41 Through-Hole
• Quantity per Package: 1 Diode

Applications of the 2.8V 1W Zener Diode

This Zener diode is ideal for voltage regulation, surge suppression, and reference voltage applications in power supplies, instrumentation, and control circuits. The NTE5064A provides effective clamping and protection, ensuring stable operation across a wide range of electronic devices.

Usage and Installation

Mount the NTE5064A Zener diode in your circuit using standard through-hole techniques. Ensure correct orientation: the cathode is typically marked with a band. For regulated voltage operation, connect the diode in reverse bias configuration across the load requiring regulation. Always observe recommended maximum power dissipation and proper thermal management for optimal longevity and reliability.

Why Choose This 2.8V 1W Zener Diode?

Engineered for consistent performance, the 2.8V 1W Zener diode in a DO-41 package delivers precise voltage regulation for critical designs. Its rugged construction ensures long-term reliability in control systems, power management applications, and sensitive analog circuitry.

This part is the equivalent replacement for the following:

CXL5064, ECG5064, ECG5064A, NTE5064A, RE98, REN5064, SK2V8/5064A, SK3982/5064A, TM5064A, WEP1148
