5.6 Volt 5 Watt Zener Diode Precision Voltage Regulation

Reliable 5.6V 5W Zener Diode for Stable Voltage Control

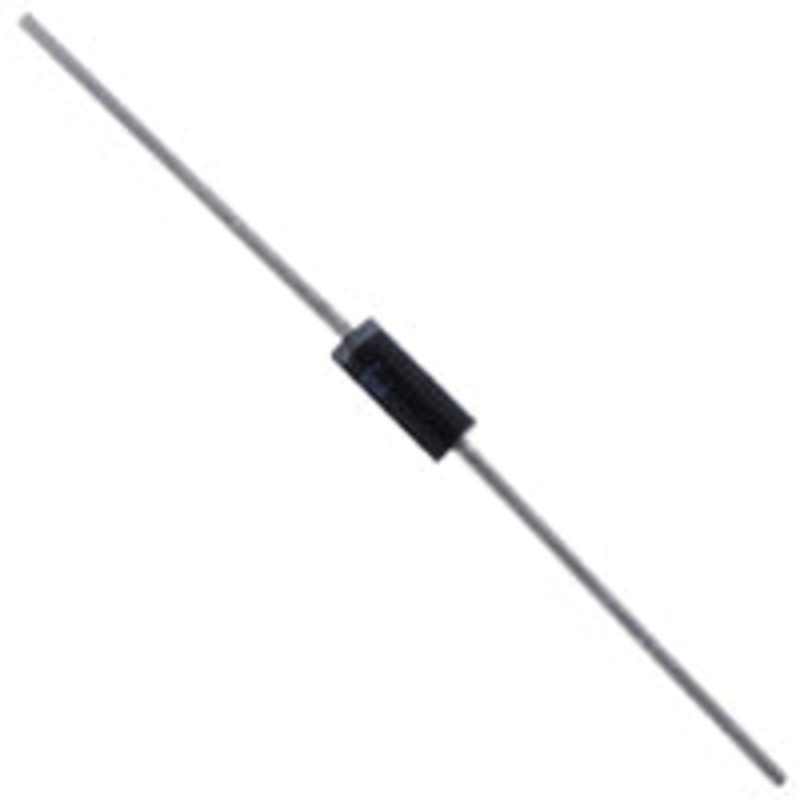

The NTE5117A 5.6 Volt 5 Watt Zener Diode delivers dependable voltage regulation in demanding electronic circuit applications. Engineered with a nominal regulating voltage of 5.6V and a robust 5-watt power rating, this through-hole, axial lead Zener diode is suited for use in professional, industrial, and high-reliability designs.

Technical Specifications

• Part Number: NTE5117A
• Zener Voltage (Vz): 5.6V nominal
• Power Dissipation: 5 Watts
• Mounting Style: Through-hole, axial lead
• Package Quantity: 1 per package

Applications and Use

Designed for voltage clamping, voltage reference, and overvoltage protection, the NTE5117A Zener diode provides consistent performance in regulated power supplies, pulse shaping circuits, and transient suppression roles. Its 5.6V nominal Zener voltage makes it ideal for logic circuit protection and low-voltage regulation tasks in both prototypes and production builds.

Dependable High-Power Zener Diode Solution

The NTE5117A 5.6V 5W Zener Diode is trusted by engineers for its solid reliability, consistent voltage regulation, and compatibility with standard through-hole PCB designs. This diode delivers precise performance where clean, stable voltage references are required.

This part is the equivalent replacement for the following:

1305, 134883461534, 1N5014, 1N5014A, 1N5339, 1N5339A, 1N5339B, 1N5339BE, 1N5339BG, 1N5919, 1N5919A, 1N5919B, 232-0029, 2EZ5.6D5, 2VR5.6, 2VR5.6A, 2VR5.6B, 3EZ5.6D5, 3TZ5.6, 3TZ5.6A, 3TZ5.6B, 3TZ5.6C, 3TZ5.6D, 3VR5.6, 3VR5.6A, 3VR5.6B, 48-83461E34, 569-1000-020, 5M5.6ZS5, 5V6, 5ZS5.6, 5ZS5.6A, 5ZS5.6B, 61E34, 7714, 919-017406-015, 919-017406-067, BZV58C5V6, BZX55D5V6, BZX61C5V6, BZX96C5V6, BZY96C5V6, CXL5117, ECG5117, ECG5117A, GE5ZD-5.6, HEP-Z2506, HEPZ2506, LMZ5.6, LMZ5.6-20, LMZ5.6A, LMZX5.6, LMZX5.6A, NT7714, NT77C5V6, NTE5117A, SK3383, SK3383/5117A, SK5X6, SK5X6/5117A, SZ56A, TM5117A, VZ56F, WEP1204, WEP1611, Z1204, Z1506, Z2506(HEP), Z2B5.6, Z2C5.6, Z2D5.6, Z3B56CF, ZBC5.6, ZBC5.6A, ZBC5.6B, ZC5.6, ZC5.6A, ZC5.6B, ZCC5.6, ZCC5.6A, ZCC5.6B
