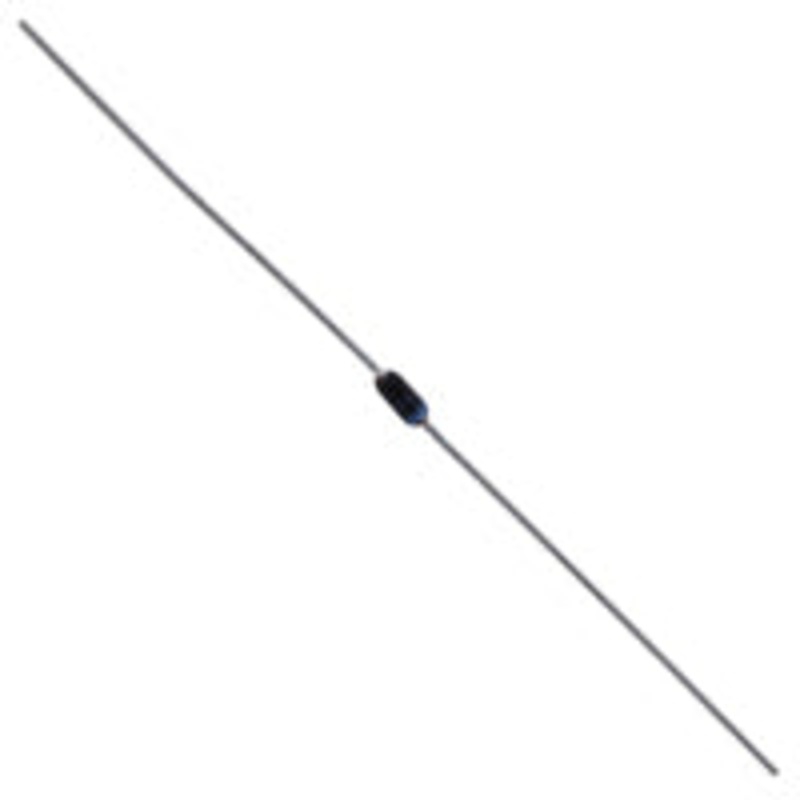

6.0 Volt 1/2 Watt Zener Diode NTE5012A

Reliable 6.0V Zener Diode for Precise Voltage Regulation

The NTE5012A is a high-reliability Zener diode designed for stable voltage regulation at a nominal 6.0 volts. With a 1/2 watt (500 mW) power dissipation rating and through-hole DO-35 axial package, this diode is well-suited for demanding applications where consistent voltage reference and overvoltage protection are required.

Technical Specifications

• Nominal Regulating Voltage (Vz): 6.0 V
• Power Dissipation: 1/2 Watt (500 mW)
• Package Type: DO-35 (axial lead, through hole)
• Quantity per package: 1
• Part Number: NTE5012A

Applications

• Voltage regulation in power supply circuits
• Overvoltage and surge protection
• Reference voltage sourcing
• Clipping and clamping circuits

Usage Instructions

For best performance, operate the NTE5012A within its rated limits. Install in a through-hole PCB layout with proper lead soldering. Ensure that the diode is not subjected to power levels exceeding 500 mW, and allow for adequate airflow or heat dissipation as needed for high-reliability operation.

This part is the equivalent replacement for the following:

019-003928, 06200083, 06A(ZENER), 06C, 06C(ZENER), 06D, 06D(ZENER), 06M, 06M6(ZENER), 06M(ZENER), 07-28977-101, 09-000-307-005-0, 090003070050, 103-279-12, 103-279-12A, 1177-1250, 1195-6372, 1214-5017(1), 1258-2352, 1330-9034, 134883461527, 1374-6755, 148764, 155344, 156790, 157-609(MAG-ZENER), 157832, 173357, 176533, 188235, 193922, 1N474, 1N474A, 1N474B, 1N5233, 1N5233A, 1N5233B, 1N5849, 1N5849A, 1N5849B, 1N706, 1N706A, 1N762, 1N762-2, 1S191, 1S2112A, 1S470, 1S756, 2169-408-0804, 2331806, 2331807, 23318075, 2339846, 264P22105, 264P29102, 264P29205, 264P46106, 32167408080, 407-048-7303, 46-8611232-3, 46-861261-3, 46-86460-3, 46-86559-3, 48-155281, 4822-130-31111, 482213031111, 48-40059U06, 48-83461E27, 48-84307A40, 48-90223A03, 4890223A03, 48-90223A67, 4890223A67, 48-90229A95, 4890233A67, 48S155080, 48S155281, 48T40059U06, 48X90223A03, 48X90223A67, 48X90229A95, 502047S, 51-02025-04, 530157-609, 5330393, 561-2557-060, 561-2654-756, .5M6.0ZS10, .5M6.0ZS5, 61E27, 62045280, 652, 652C3, 652C4, 652C5, 652C6, 6C1, 6C1(ZENER), 6S155080, 76RECT-SI-176, 810049, 8-719-995-01, 903-498, BZ060, BZX79C12V, BZX79-C6, BZX83C6V2, BZX95C12, BZY88C6V2, BZZ10, CH5233, CXL5012, DFEQA02-06, DFEQA02-06C, DFEQA02-06D, E1303Z, E1322Z, EA16X163, EA16X417, ECG5012A, ED0035, ED0036, ED0084C, ED0084D, ED036, EP16X61, EQA01-06, EQA01-06S, EQA01-06S13, EQA01-06SB, EQA01-06SC, EQA01-06SE, EQA01-06TV, EQA02-06, EQA0206, EQA02-06C, EQA02-06CD, EQA-02-06D, EQA02-06D-TAPG, EQA02-06M4, EQA02-06M6, EQA02-06S, EQA03-06C, EQA0306C, EW16X417, EW16X543, EW16X556, EW16X590, EW16X606, EW16X61, GZA6.2L, HZ-06C, HZ22-3, HZ6, HZ6-1, HZ61, HZ683, HZ6A19, HZ6B20, HZ-6B3, HZ6(B)3, HZ6B3, HZ6B-3L, HZ-6C, HZ6(C), HZ6C, HZ-6C-1, HZ-6C1, HZ6(C)1, HZ6-C1, HZ6C-1, HZ6C1, HZ6CV, HZ6CY, HZ-6Z, MA4062L, MA4062LTV, MA4062LTVTA, MZ206B, MZ306, MZ306-A1, MZ306-A2, MZ306B, MZ306-B2, MZ306C3, MZ6A19, NTE5012A, O6C(ZENER), O6M(ZENER), QA206A, QA206B, QA206CD, QA206M, QA206MV, QA2206CD, RD6.1EB1, RD6.2EB1, RD6.2EB1Z, RD6.2ESB1, RD6.3EB1, RVEQA0106S, SK3778, SK3778/5012A, SK6A0, SK6A0/5012A, TM5012A, TVSQA206, TVSQA206A, TVSQA206B, TVSQA206CD, TVSQA206CDV, TVSQA206M, TVSQA206MV, TVSRD6.2EB1, VHEHZ6B2///1A, VSQA206CD, VZ-058, VZ-061, VZ061, WEP1413, WZ058, XZ-060, XZ060, Z6A2, ZL6, ZM6, ZM6A, ZM6B
