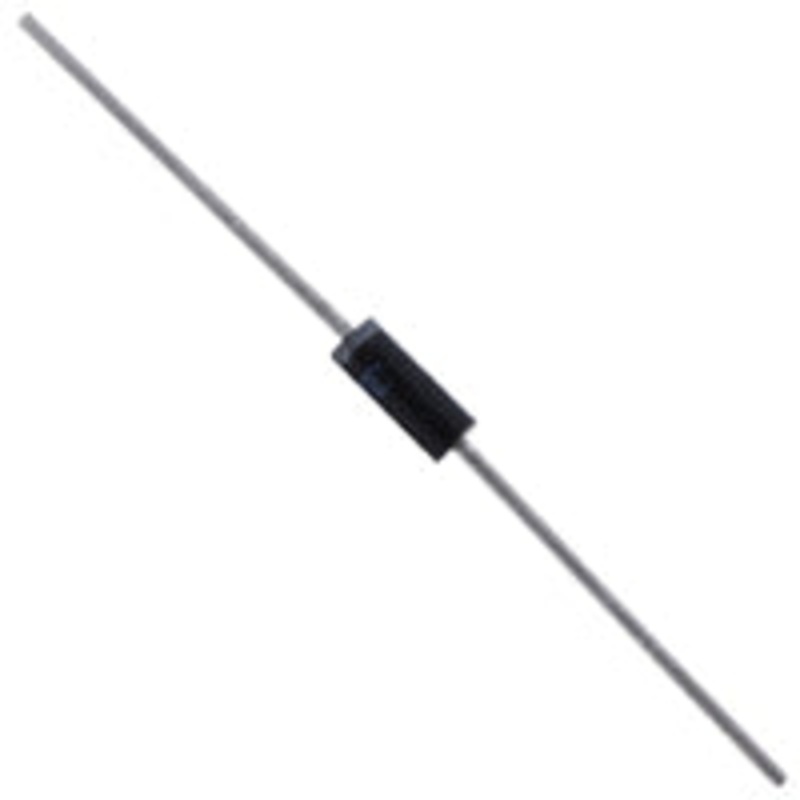

6.0 Volt 5 Watt Zener Diode Through Hole

Reliable Voltage Regulation with the NTE5118A Zener Diode

This 6.0 volt 5 watt Zener diode offers stable and dependable voltage regulation for demanding electronic applications. Engineered for through hole installation, the NTE5118A is a robust solution for voltage reference and overvoltage protection in a wide variety of circuit designs. Its nominal regulating voltage of 6.0V makes it ideal for safeguarding sensitive components and maintaining precise power supply performance.

Key Features

• Zener Voltage: 6.0V nominal regulating voltage
• Power Dissipation: 5 Watts
• Mounting Style: Axial lead, through hole
• Part Number: NTE5118A
• Quantity per package: 1

Applications

• Voltage regulation and reference circuits
• Overvoltage and surge protection
• Clipping, clamping, and waveform shaping
• General-purpose power supply design

Usage Instructions

Install the NTE5118A Zener diode in your circuit following correct polarity. Use the through hole leads for reliable PCB mounting. This Zener diode is designed for use in locations where a 6.0V nominal regulating voltage is required, and a 5 watt power dissipation rating meets your circuits demands.

This part is the equivalent replacement for the following:

1902-0522, 1N5340, 1N5340A, 1N5340B, 1N5340BE, 1S341, 2VR6, 2VR6.2, 2VR6.2A, 2VR6.2B, 2VR6A, 2VR6B, 3VR6, 3VR6A, 3VR6B, 5M6.0ZS5, 5ZS6.0A, 919-017406-023, CXL5118, ECG5118, ECG5118A, GE5ZD-5.8, GE5ZD-6.0, LMZ6.0, LMZ6.0-20, LMZ6.0A, LMZX6.0, LMZX6.0A, NTE5118A, SK3384, SK3384/5118A, SK6X0, SK6X0/5118A, TM5118A, WEP1612, WEP1613
