6.2V 5 Watt Zener Diode – Through Hole

Overview

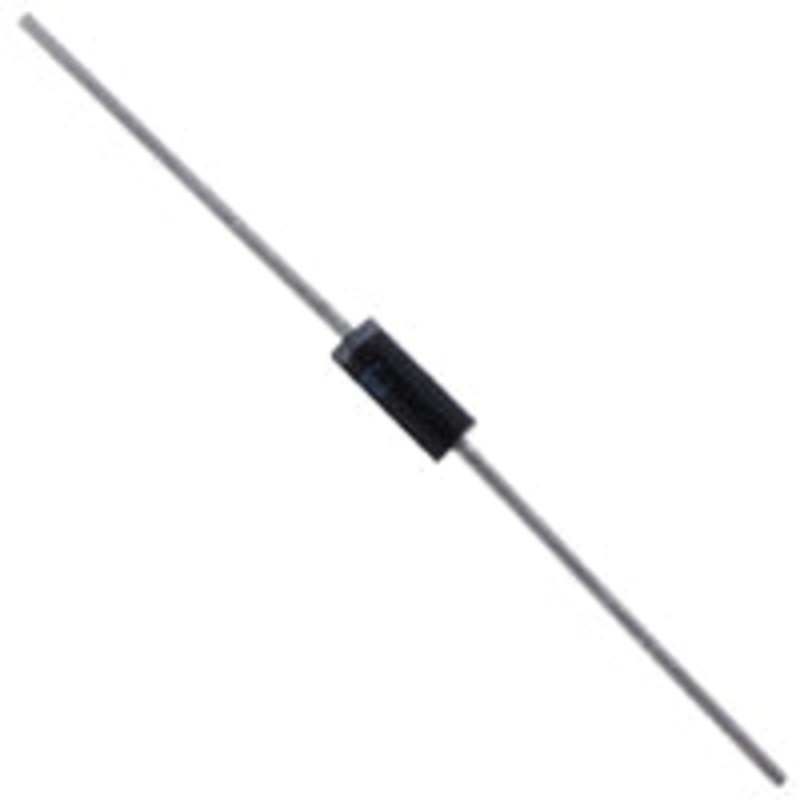

This 6.2V 5 Watt Zener diode (NTE5119A) is engineered for robust voltage regulation in demanding electronic applications. Designed in a through-hole axial-lead package, it is ideal for precise voltage clamping, reference voltage generation, and overvoltage protection in power supplies and control circuitry.

Key Features

• Nominal Regulating Voltage: 6.2 Volts
• Power Dissipation: 5 Watts
• Package: Axial Lead (through hole)
• Reliable operation for voltage reference and regulation

Technical Information

• Regulates and clamps voltage at 6.2V under specified conditions
• Suitable for high-stability circuits requiring precise zener performance
• Single unit per package

Usage Instructions

For stable Zener regulation, connect the diode in reverse bias (cathode to the positive side of the circuit) across the portion of the circuit requiring voltage control. Ensure the diode’s dissipated power does not exceed 5 watts in continuous operation to maintain reliability.

This part is the equivalent replacement for the following:

1116-2823, 1477046-19, 1N4460, 1N5015, 1N5015A, 1N5341, 1N5341A, 1N5341B, 1N5341BE, 1N5920, 1N5920A, 1N5920B, 1N5969, 2EZ6.2D5, 3BZ6.2, 3BZ6.2A, 3BZ6.2B, 3EZ6.2D5, 3TZ6.2, 3TZ6.2A, 3TZ6.2B, 3TZ6.2C, 3TZ6.2D, 3VR6.2, 3VR6.2A, 3VR6.2B, 5M6.2ZS5, 5ZS6.2, 5ZS6.2A, 5ZS6.2B, 7046-19(RCA), 7715, 919-017406-024, 99201-116, 9984, BZV58C6V2, BZX61C6V2, BZX96C6V2, BZY96C6V2, CXL5119, ECG5119, ECG5119A, GE5ZD-6.2, HEP-Z2508, HEPZ2508, LMZ6.2, LMZ6.2-20, LMZ6.2A, LMZX6.2, LMZX6.2A, MC6308A, NT7715, NT77C6V2, NT9984, NTE5119A, SK3385, SK3385/5119A, SK6X2, SK6X2/5119A, SZ62A, TM5119A, VZ62F, WEP1614, Z2508(HEP), Z2B6.2, Z2C6.2, Z2D6.2, Z3B62CF, ZBC6.2, ZBC6.2A, ZBC6.2B, ZC6.2, ZC6.2A, ZC6.2B, ZCC6.2, ZCC6.2A, ZCC6.2B
