7.5 Volt 10 Watt Zener Diode Stud Mount Voltage Regulator

Reliable Stud Mount Zener Diode for High-Power Applications

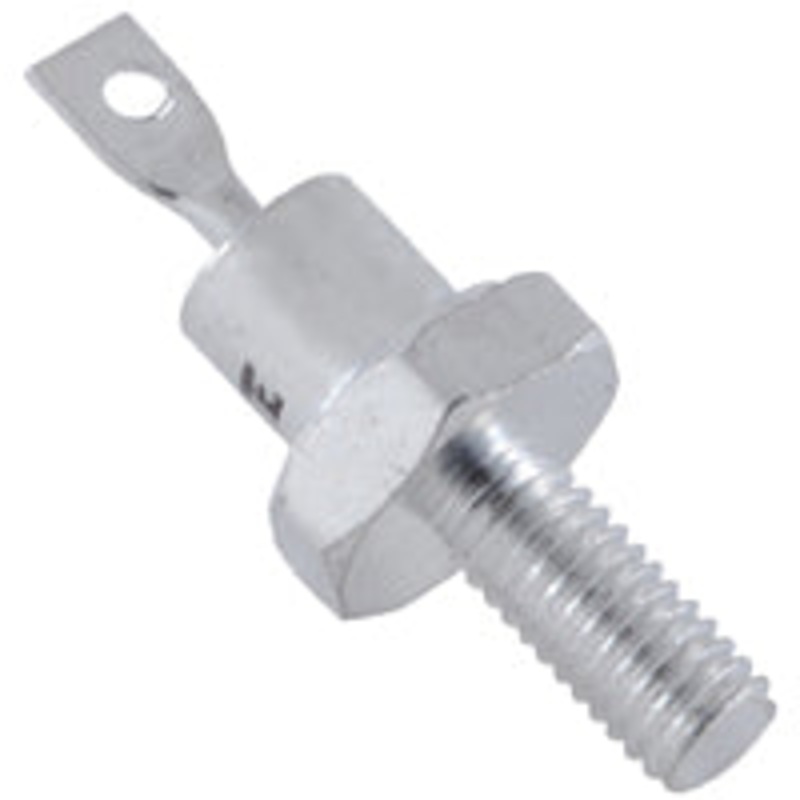

This 7.5V 10W Zener diode is engineered for precision voltage regulation in demanding power systems. Designed with a robust stud mount (DO-4) package, it offers exceptional mechanical stability and enhanced thermal dissipation, making it ideal for both industrial and commercial environments where reliability is essential.

Nominal 7.5V Zener Regulating Voltage

With a nominal regulating voltage of 7.5 volts, this Zener diode delivers consistent voltage stabilization in power supply designs, voltage reference circuits, and overvoltage protection applications. It is rated for a maximum dissipation of 10 watts, allowing dependable performance under continuous high-current loads.

Key Technical Specifications

• Zener Voltage (Vz): 7.5 V nominal
• Maximum Power Dissipation: 10 W
• Case Type: DO-4 stud mount
• Number per Package: 1
• NTE Part Number: NTE5182A

Stud Mount Design for Secure, High-Current Operation

The 10W stud mount configuration allows for easy installation to a chassis or heat sink, providing superior heat management and ensuring stability during continuous operation. When mounting, ensure proper use of thermal compound and torque for optimal thermal conductivity and electrical reliability.

Applications

• Power supply voltage regulation
• Precision reference and clamping circuits
• Industrial controls and instrumentation
• Overvoltage protection in high-power systems

Ordering & Usage Information

Each unit is sold individually. For proper operation, ensure the device is securely mounted and receives appropriate thermal management. For technical inquiries or application support, provides in-depth assistance for your design or replacement requirements.

This part is the equivalent replacement for the following:

001-023020, 0AZ225, 10M7.5AZ5, 10M7.5Z5, 10PZ7.5, 10PZ7.5A, 10PZ7.5B, 10PZ7.5C, 10PZ7.5D, 10RZ7.5, 10RZ7.5A, 10RZ7.5B, 10RZ7.5C, 10RZ7.5D, 10T7.5, 10T7.5A, 10T7.5B, 10Z7.5T10, 10Z7.5T20, 10Z7.5T5, 1N1806, 1N1806A, 1N2971, 1N2971A, 1N2971B, 1N4000AR, 1N4000R, 1N4000RA, 1N4195, 1N4195A, 1N4259, 1N4259A, 1S265, 1S5007A, 1S6007, 1S6007A, 3T7.5, 3T7.5A, 3T7.5B, 3Z7.5T10, 3Z7.5T20, 3Z7.5T5, 48P83624E08, 60Z6, 60Z6A, BZY75, BZZ17, CXL5182, ECG5182, ECG5182A, NTE5182A, RE145, REN5182, SK130, SK130/5182A, TM5182A, Z3B7.5R
