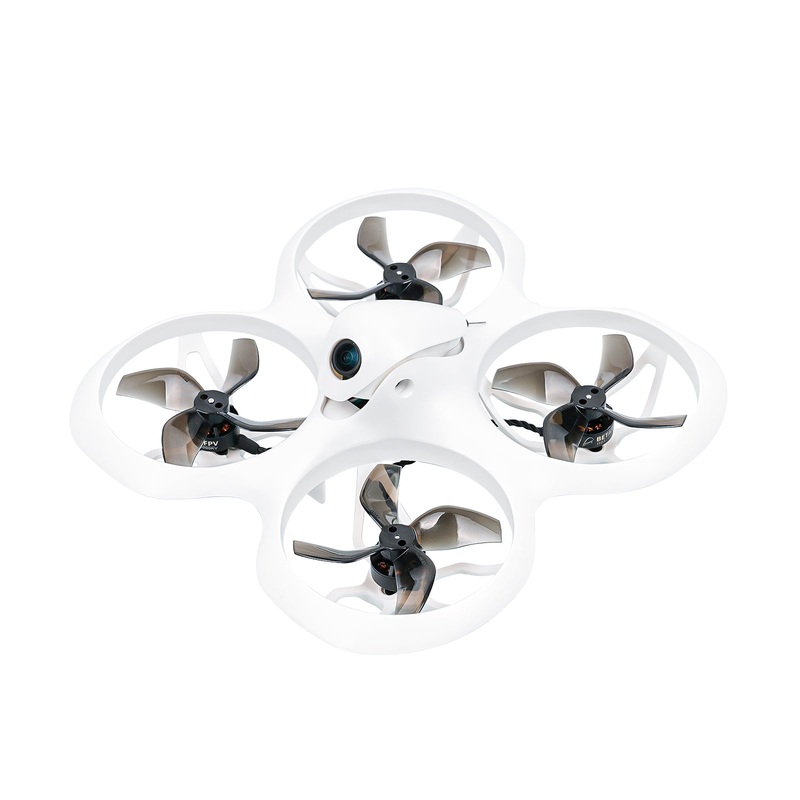

Cetus X is a primary choice for beginners who want to get advanced flight skills. The 2S power makes it stands out, giving Cetus X stronger propulsion and faster speed to perform diverse freestyle tricks. Equipped with M04 400mW VTX and C04 FPV camera that is optimized for longer radio and video transmission. Two FC versions provide different functions to pilots but all help pilots to the next level.

Cetus XRTF FPV Kit is available now! Please click here to buy.

Recommend the newestBT2.0 550mAh 1S Battery. More flight time and higher discharge rate.

Bullet Point

• An excellent preference for beginners to get advancedlevel. Cetus X brushless Quadcopter is proud of its lightning speed with rapid startupdueto its stronger propulsion system.
• Build-in ExpressLRS 2.4G receiver that is the most popular radio link, low latency, and far controlling range are possible. Pilots can not only enjoy the flight indoors but also explore the scenery outdoors.
• The drone with Frsky receiver protocol version is also provided for customers who used to haveLiteRadio 2 SE radio transmitterinCetus Pro or Cetus RTF Kit.
• Featuring M04 400mW VTX, C04 FPV camera (based on Caddx Nano Ant Camera or Runcam Nano 4), andBT2.0 450mAh 1S 75Cbattery for longer radio and video transmission and flight endurance, Cetus X brushless quadcopter allows beginners to gain more achievements in FPV flight.
• The Betaflight FC comes with the most popular firmware in the FPV community. Beginners are able to learn and understand more about FPV, which is anessentialway to get drone experience.
• The Cetus FC version offers an auxiliary flight function for pilots with three speed modes. It is easier and more suitable for initial pilots.
• Classical white design inherited fromCetus Seriesand made of PA12 material, Cetus X framehas an excellent impact resistance in drop & impact. The 360 protection of the whoop frame ensures safe flights both indoors and outdoors. Meanwhile, the FPVcamera supports 0-40adjustable degrees, which provides different views for pilots.

Specification

• Item:Cetus X Brushless Quadcopter
• Weight: 55g
• Wheelbase: 95mm
• FC*: F4 2S 15A V1.0(Betaflight FC Version)/Cetus BL V3 Flight Controller(Cetus FC Version)
• Motors:1103 11000KVMotor
• Props:Gemfan 2020 4-Blades Props
• Camera: C04 FPV Camera (Caddx Nano Ant Camera/Runcam Nano 4)
• Camera Adjustable Angle: 0-40
• Frame:Cetus X Brushless Whoop Frame
• Receiver Protocol: ELRS 2.4G (Betaflight FC Version)/Frsky D8(CetusFC Version)
• VTX: M04 25-400mW VTX (Betaflight FC Version)/Cetus 25-350mW VTX V2 (Cetus FC Version)
• Battery*: BT2.0 450mAh 1S 75C Battery
• Flight time: 5 mins

Note: FC(Betaflight FC Version) has been replaced fromF4 1S 12A FCto F4 2S 15A V1.0 since Sep 2023. The battery will be upgraded from BT2.0 450mAh 1S 30C Battery to BT2.0 450mAh 1S 75C Battery from Feb 2024.

ExpressLRS 2.4G

Equipped withF4 2S 15A V1.0 FCandCetus BL V3 FC, Cetus X brushless quadcopter supports ELRS 2.4G RX protocol. And F4 2S 15A V1.0 FC RX version supports Betaflight configurator, while Cetus BL V3FC does not. Pilots who had Cetus Pro or Cetus RTF Kit can continue to use LiteRadio 2 SE radio transmitter to fly Cetus X Frsky D8 version.

Cetus FC or Betaflight FC

Cetus X with the classical Cetus flight controller version is released. It supports the position hold function, which provides easier control to pilots. If select the Betaflight FC version, pilots are able to learn and understand the drone configuration. Both FC versions perform great in power and speed and have higher-grade flight modes for pilots to get advanced.

Note: FC(Betaflight FC Version) has been replaced fromF4 1S 12A FCto F4 2S 15A V1.0 since Sep 2023.

Note: Pilots who have LiteRadio 2 SE in Cetus or Cetus Pro FPV Kit can bind and fly the Cetus X Cetus FC version.

Auxiliary Flight Function

Built-in highly precise barometer to detect the height,the version with Cetus FC benefits from great stability due to itspositionhold mode, and auto-hovering, whichenables the drone to stay at the current height.This function also ensures an emergency landing of the dronewhenever loses control or is on low battery.Meanwhile, its stable flight allows you to catch the best footage with the FPV Goggles. It really does an immense amount of fun and ease of flight for all pilots.Recommend flying it with VR03 Goggles.

Powered by 2S, Cetus X has loads ofpunch and speed, making it smoother and more suitable for outdoor practice, great for the next level. For indoor practice, theCetus Prowith 1S power, which has the sameauxiliary flight function, is easier for initial pilots to control and fly.

Note: The positionhold function is only available in N mode.

Improved Video Transmission

Cetus X Brushless Quadcoptercomes withM04 25-400mW VTXand C04 FPV camera. The VTX features a lightweight and adjustable output power for longer distance flying. Combining this VTX and the excellent radio link ExpressLRS 2.4G/Frsky D8, pilots can fly whoop drones longer to explore more possibilities and have fun. In addition, C04 FPV camera (based onCaddx Nano Ant Camera/Runcam Nano 4) shows better quality in FPV flight compared withC02 FPV camera.

PowerfulPropulsion System

Equipped with1103 11000KV Brushless MotorandGemfan 2020 4-blade props. 1103 motors are designed for2S quadcopters with incredible power, smooth and quiet operation,and light enough. Besides, Cetus X quadcopter adopts 2020 4-blade props, which are lighter and durable enough, offering pilots a high-efficiency flight experience.

Primary Choice for NextLevel

Cetus X Brushless Qaducopter Betaflight FC version supports configuring on Betaflight configurator. It is aprimary choice for beginners who start to learn drone configuring, which helps beginners to get advanced level. With the Betaflight configurator, you can calibrate accelerometer, custom OSD content, adjust the video transmitter and etc.

Note: Please DO NOT configure ESC or Motor settings on Betaflight configurator.

Betaflight Flight Controller

Cetus X brushless quadcopter is built-inF42S15AV1.0 FC, supporting ELRS 2.4G protocol. The ELRS 2.4G version comes with betaflight 4.3.1 FC firmware so it supports ELRS V2.0.The ESC on the new board powered by BB51 hardware comes with Bluejay48k ESC firmware, allowing1103 11000KV motorsto give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability since the new F42S15AV1.0 FC.

Click here to know more information about F4 1S 12A Flight Controller ELRS or Frsky.

Since Sep 2023, FC (Betaflight FC version) has been replaced fromF4 1S 12A FCto F4 2S 15A V1.0. Here are the differences between them.

Click here to know more information about F4 1S 12A Flight Controller ELRS or Frsky.

For Cetus X ELRS 2.4G version, the Betaflight firmware 4.3.0 and up start to support BMI270 gyro. For Frsky D8 version,we recommend using BETAFPVF411RX 4.2.11 firmware and CLI dump file offered by .

The default flight controller firmware enablesbidirectional D-shot and is compatible with Bluejay ESC firmware. If you update the 4.3.0 and up firmware for ELRS 2.4G from the Betaflight official site, please flash the CLI dump file for Cetus X.

Download the firmware and CLI dump file forCetus XELRS 2.4G or Frsky.

The Bluejay firmware could support the BB51 hardware now.Both ELRS and Frsky boards are powered by BB51 hardware.If you want to setup the ESC specification, please use the BLHeliSuite16714902A_Beta orESC-Configurator.

• ESC-Configurator:https://preview.esc-configurator.com/
• Download BLHeliSuite16714902A_Beta here.
• Download the Bluejay ESC firmwarehere.

Note: Only ELRS 2.4G version supports motor direction set through Betaflight Configurator and SPI Frsky version does not support it. BLHeli Configurator and Bluejay Configurator are invalid for the BB51 ESC (both versions).

Recommended Parts

• Radio Transmitter:LiteRadio3,LiteRadio 2 SE
• Goggles:VR02 FPV Goggles,VR03 FPV Goggles
• Battery:BT2.0 450mAh 1S 30C Battery,BT2.0 550mAh 1S Battery
• Props:Gemfan 2020 4-Blade Propellers
• Camera: C04 Camera and VTX Module
• Accessory:Drone Screw Pack

FAQ

• ExpressLRS 2.4G is the most popular radio link now.Know more about ExpressLRS here.
• The frame and props are visible when the camera’s angle is 0. Adjust it to about 25, thenthe frame and props are invisible when flying.
• Downloadthe CLI dump file for Cetus X(Betaflight F4 1S 12A FC version).
• DownloadtheCLI dump file for Cetus X(Betaflight F4 2S 15A V1.0 FC version).
• Downloadthe CLI dump file for Cetus X(Cetus FC version).
• Downloadthe Manualfor Cetus X(Betaflight F4 1S 12A FC version).
• Downloadthe Manualfor Cetus X(Betaflight F4 2S 15A V1.0 FC version).
• Downloadthe Manualfor Cetus X(Cetus FC version).
• Cetus X Brushless Quadcopter should work with two 1S batteries. Do not recommend using different brand batteries. Highly recommend the original batteriesBT2.0 450mAh 1S 30C Battery.
• Cetus X Brushless Quadcopter is similar toMeteor85 Brushless Whoop Quadcopter (2S)in many ways. For flying maneuverability and more battery choices,Meteor85 is a good alternative choice.

Package

• 1 *Cetus X Brushless Quadcopter
• 1 * BT2.0 Battery Charger and Voltage Tester
• 2 * BT2.0 450mAh 1S 75C Battery
• 1 * Phillips Screwdriver
• 1 * Prop Removal Tool
• 1 * Type-C Adapter
• 4* Gemfan 2020 4-Blades Props
