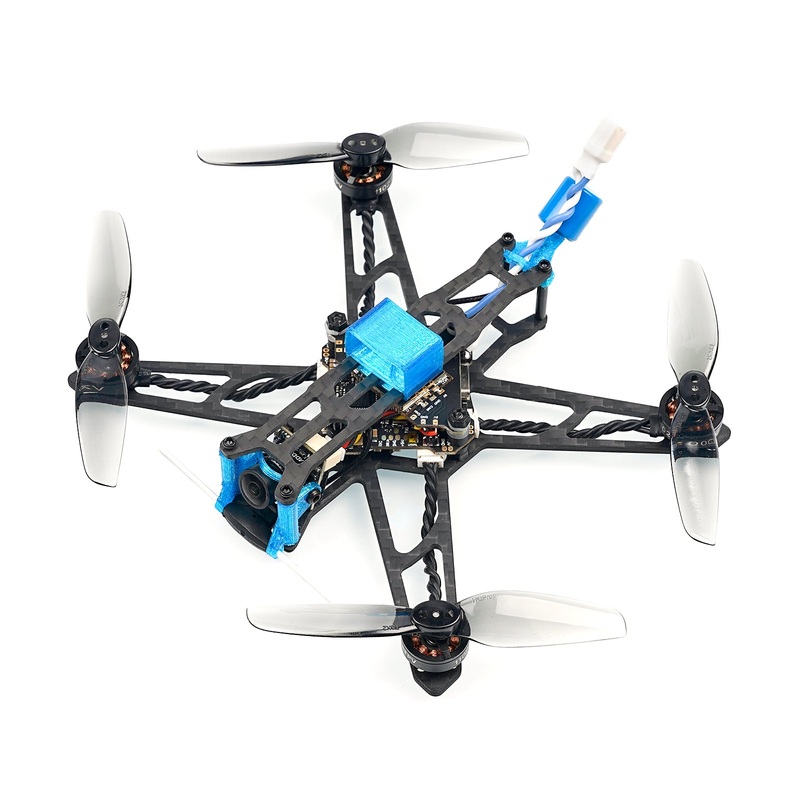

HX115 LR Toothpick Drone is an ultralight 3″ 1S ToothpickQuadcopter for long-range flying. Equipped with anF4 1S 12A AIO Flight controller thatintegrates ExpressLRS 2.4G receiver, the drone is available for long-range with a reliable radio link. Even with a 18650 battery, the cruising speed is higher than you probably expect. Since it is equipped with a powerful 350mW M02 5.8G VTXand built-in ExpressLRS receiver, the HX115 LR has several kilometers of video and radio signal range.

A ton of ExpressLRSitems are available now!

Bullet Point

• Equipped with F4 1S 12A AIO Flight controller, which is specially designed for 1S 3-inch toothpick drone. Ultralight 44g without battery and 3-5 minutes flight time with BT2.0 450mAh 1S battery.
• The popular ExpressLRS 2.4G receiver and 350mW 5.8G VTX could provide a long-range flying experience. Besides, the mounting of the 18650 battery is considered at the beginning. Pilots could assemble their own 18650 battery bay conveniently and enjoy longer flying.
• Equipped with a BT2.0 connector, it can support a 9A continuous current and 15A burst while the PH2.0 connector uses a 4.5A continuous current. It provides stablepower and outstanding performance for HX115 LR Toothpick Drone.
• 1102 18000KV motor and durable HQ3020 2-blade props formed ahighly efficient power system, whichlays a foundation forexcellent flight performance.

Specification

• Item: HX115 LR Toothpick Drone
• Wheelbase126mm
• Weight44g
• Motor1102-18000KV
• Charge connectorBT2.0 connector
• PropellerHQ 3020 2-Blade Propellers 1.5mm Shaft
• Flight controller: F41S 12AAIO FC with ELRS 2.4G Receiver
• BatteryBT2.0450mAh1S Battery
• VTX:M02 25-350mW 5.8G VTX
• Camera CaddxANT camera
• Camera Tilt Degree0-60
• Receiver Built-in ExpressLRS 2.4G Receiver
• Flight time3-5minwith BT2.0450mAh1S Battery / 15min+ withSony VCT6 3000mAh battery

12A 1S FC with ExpressLRS RX

Most of the 1S flight controllers on the marketcome with 5A ESC by now, F4 1S 12A AIO FC especially integrates 1S 12A ESC for 3-inch toothpick drones. with this FC, pilotscanfly HX115 LR allsmooth and powerful flying actions without any worries.

This board integrates the receiver with the most popular radio link ExpressLRS in 2021. ExpressLRS aims to achieve the best possible link performance in both speeds, latency, and range. The serial protocol between the receiver and the F411 FC is the Crossfire serial protocol. Know more about the ExpressLRSproject onGithubor join the discussion in theFacebook Group.

How to Bind with Betaflight FC with ExpressLRS Receiver.

Cli command for the 12A 1S FC board.

18650 Battery Bay

At the beginning of designingthe HX115 LR frame, the standard 18650 battery bay is considered.

With the high C rate Sony VCT6 3000mAh battery, the flying time could be up to prettyexcellent15 minutes. Please note: 18650 Battery Bay is not included in the package.

Motor & Props

HX115 LR Toothpick Drone equipped with lightweight1102 18000KV motor, it provides powerful thrust to HX115 LR and makes the drone fly super fast and smooth! Combined with durable HQ3020 2-blade props, thishigh-efficientpower systemlays a foundation forexcellent flight performance.

FAQ

Note: Now the defaultflight controller firmware for the HX115 LR ELRS version is updated toBetaflight V4.3.0 RC6, which supports ELRS V2.0. For the ERLS V1.0 version, if you need to update it for supporting ERLS V2.0, please refer to the link below.

Firmware including CLI file(Betaflight_4.3.0_Official_Version_HX115 LR_ELRS.hex)

Firmwareonly(betaflight_4.3.0_BETAFPVF4SX1280.hex)

CLI file only(BTFL_cli_HX115_LR-ELRS2.0.txt)

Click here to downloadSTL File for HX115 LR

How can I solve the jitter issue with this quad?

You may make some adjustments to your PID setting. Find in the link here,PID update of the HX115 LR Toothpick Drone.

PACKAGE

• 1 *HX115 LR Toothpick Drone
• 1 * BT2.0 450mAh 1S Battery ( 18650 battery and battery bay are NOT included)
• 1 * set ofHQ 3020 2-Blade Props
