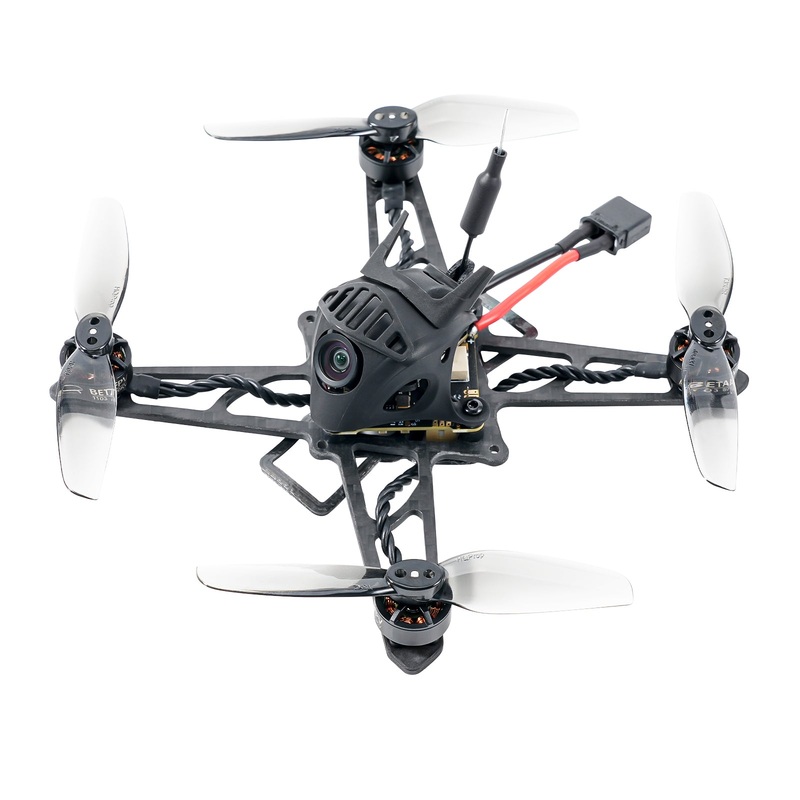

The HX115 SE Toothpick Drone is an exceptional3”ultralight drone with multiple enhancements over its 2021 version. It boasts the newF4 1S 12A AIO FC 2022and an upgraded 2S power source for a more powerful experience. Equipped with1103 | 8000KV motorsandHQ 3020 2-blade Props, resulting in extended flight time from 5 mins to 12 mins. The UpgradedM03 25-350mW 5.8G VTX, with up to 350mW transmission power, keeps stable transmission of images over long distances and in complex environments. Its lightweight design and smooth flight capabilities embody the perfect balance of extreme lightness and performance, satisfying pilots’ pursuit of excellence.

Bullet Point

• Upgraded 2Spropulsion systemand1103 | 8000KV motorsimproved flight stability and thrust, and only weigh 40.76g.
• Equipped withHQ 3020 2-blade props, it generates high thrust at high speed while consuming less power, resulting in a longer flight time of 12 mins.
• The newF4 1S 12A ELRS V2.2/Frsky V1.2 FCprovides more power, faster response time, and a more precise control experience.
• UpgradedM03 VTX with 350mWimage transmission power ensures stable transmission incomplexor long-distance environments.
• The 1.45gC03 FPV micro cameracaptures high-quality and clear video featuring a FOV 160 beyond wide angle, 1200TVL resolution, and a 1/3″ CMOS sensor.
• The detachable blackMicro canopy 2022provides easy replacement and maintenance, providing more installation options and better adaptability for various3”toothpick drones freestyle.

Specification

• Item:HX115 SE Toothpick Drone
• Weight:40.76g
• FC: F4 1-2S 12A FC(SPI ELRS2.4G/SPI Frsky)
• Motors:1103 | 8000KV Motors
• Props:HQ 3020 2-blade Props
• Camera:C03FPVMicroCamera
• Camera Adjustable Angle:20,30
• Canopy:Micro Canopy 2022
• RX Version:SPI ELRS2.4G, SPI Frsky
• VTX:M03 25-350mW 5.8G VTX,Copper Tube Antenna
• Battery:450mAh 2S 45C Battery
• SmoothFlight Time:12 mins
• Color:Black
• Wheelbase:115mm

HX115 SE Series

This is the new HX115 SE with a newpropulsion system, perfect for a2S 450mAh battery, and comes with a new micro canopy for good airflow to decrease heat, and the SPI ELRS 2.4G and SPI Frsky versions also support external receivers and so can be used as PNP. The propulsion system, upgraded by adoptingHQ 3020 2-blade propswith1103 8000KV motorsbecomes more powerful and maneuverable for freestyle. Meet the pilots who want to fly a 2S HD whoop drone requirement.

Flight Controller

TheF4 1S 12A AIO FC 2022isapplied to HX115 SE Toothpick Drone. Both SPI ELRS 2.4G and SPI Frsky can be used as PNP due to extra solder pads for the external receiver. The SPI Frsky version also can be switched to the Futaba SFHSS protocol through the Betaflight configurator.The ESC on the new board powered by BB51 hardware comes with Bluejay 48K ESC firmware, allowing the1103 | 8000KV motorsto give full play to the efficiency of power. We update the gyro to BOSH BMI270 for better performance and stability.This FC can respond to operating instructions faster, providing a more precise racing control experience.

Note: F4 1-2S 12A AIO SPI ELRS 2.4G comes with the default firmware betaflight_4.3.1_BETAFPVF4SX1280, which supports ELRS V2.0.ONLY the Betaflight firmware 4.3.0 and up start to support this BMI270 gyro. Please check the below link to download the firmware.

Download the firmware and CLI dump file for the F4 1-2S 12A FC ELRS or Frsky.

Camera & VTX System

Upgrading to theM03 25-350mW 5.8G VTXprovides stronger anti-interference capability and a longer transmission distance, ensuring stable and reliable video transmission and allowing for better control and more accurate monitoring of the drone. while using the lightweightC03FPV microcamerawith high resolution and a wide field of view enhances the transmission power and stability of the video feed. making it extremely low latency and clear, bright video, providing pilots with faster response times and a better visual experience for improved performance in racing.

Propulsion System

The 2Spropulsion systemhas undergone an upgrade, with the motors being upgraded to1103 | 8000KV motors. This modification has resulted in increased flight stability and thrust, making it more suitable for racing purposes. And the weight has only increased by a mere 1.5g. When combined with the lightweightHQ 3020 2-blade Props, the system can accelerate and change direction quickly while generating high thrust at high speeds, all while consuming less power. This enhances power efficiency, leading to an impressive 12 mins ultra-long flight time, making it an optimal choicefor freestyle trick entertainment.

Flight Time up to 12 mins

This high-efficientpropulsion system,The1103 | 8000KV motorscombined with durableHQ 3020 2- blade props, generates high thrust at high speed while consuming less power, resulting in a longer flight time of 12 mins from 5 mins, making it an optimal choicefor freestyle trick entertainment.

FAQ

• Click to download the CLI dump file for HX115 SE Toothpick Drone 2023

PACKAGE

• 1 * HX115 SE Toothpick Drone
• 1 * 450mAh 2S 45C Battery
• 1 * USB Adapter Board
• 1 * 4Pin USB Conversion Cable
• 8 * HQ 3020 2-Blade Props
