General InformationBrandStahlwilleNumber of Pieces163 What’s Included96831100, TCS 13214/1 WT/LM 1
2 sockets with hex 1/4″ No. 40: 4; 4.5 mm
11 sockets with double hex 1/4″ No. 40D: 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
6 sockets 3/8″ No. 45: 15; 17; 19; 21; 22; 24 mm
4 sockets 3/8″ No. 46: 15; 17; 19; 21 mm
2 QuickRelease extensions 1/4″No. 408QR: L.55 150 mm
1 QuickRelease universal joint 1/4″No. 407/1QR: L.45 mm
1 transition piece 1/4″ to 3/8″ No. 409M: L.13 mm
1 QuickRelease fine-tooth ratchet 1/4″ No. 415QR N: L.117 mm
1 Bit fine-tooth ratchet 1/4″ No. 415SGB N: L.117 mm
1 Bit holder 1/4″ No. 412: L.25 mm
2 QuickRelease extensions 3/8″ No. 426QR: L.75 ; 240 mm
1 QuickRelease universal joint 3/8″ No. 428/1QR: L.60 mm
1 Reducer 3/8″ to 1/4″ No. 431: L.28 mm
1 Transition piece 3/8″ to 1/2″ No. 432M: L.16 mm
1 QuickRelease fine-tooth ratchet 3/8″ No. 435QR N: L.193 mm
1 Bit holder 5/16″ No. 443: L.32 mm
1 Bit ratchet 1/4″ No. 4008-1
1 Bit set No. 1208: 1 Quick-release holder 1/4″ | L.25mm: SL4.5;6.5;8mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32″ | adaptor 1/4″ 4KT/6KT | 30-piece
1 Plug-in handle 1/4″ No. 400: L.150 mm
96831101, TCS 13214/1 WT/LM 2
1 QuickRelease crank No. 453QR: L.408 mm
1 Precision feeler gauge No. 11095/20: 0.05; 0.10; 0.15; 0.20; 0.25; 0.30; 0.35; 0.40; 0.45; 0.50; 0.55; 0.60; 0.65; 0.70; 0.75; 0.80; 0.85; 0.90; 0.95; 1.00 mm
1 Cable gauge No. 12320: blade length 90 mm
1 claw gripper No. 12922: L.540 mm
1 Tyre tread gauge No. 12900/3: L.150 mm
1 Combination spanner, adjustable No. 4025 6, SW max.24 mm
1 Combination spanner OPEN BOX No. 13: 30 mm L.330 mm
1 Socket with hexagon, long No. 40L: 4.5 mm
12 Sockets with double hexagon, long 1/4″ No. 40DL: 4.5; 5; 5.5; 6; 7; 8; 9; 10; 11; 12; 13; 14 mm
5 Articulated sockets with double hex 1/4″ No. 402: 6; 7; 8; 9; 10 mm
96831102, TCS 13214/1 WT/LM 3
1 Caliper No. 12900N: L.150 mm
1 Telescopic mirror No. 12921M: L.178-921 mm
1 Water pump pliers FastGRIPNo. 6572: L.240 mm
1 Wire twist pliers No. 6575 1: L.230 mm
1 Grip pliers No. 6564 2: L.175 mm
1 Electronic side cutters No. 6707: L.115 mm
1 Combination pliers No. 6700: L.160 mm
1 Telephone pliers No. 6731: L.200 mm
96831103, TCS 13214/1 WT/LM 4
4 Pin punches No. 109: 1.4; 2.8; 3.4; 3.9 mm
1 Locksmith’s hammer No. 10961: 500 g
1 Soft-face hammer No. 10959: D.35 mm
1 Steel rule No. 13110: L.300 mm
1 Brass mandrel No. 12495: L.200 mm
1 Scriber No. 12321: L.250 mm
1 Pin magnetic lifter No. 12601: L.145 mm mm
1 Roller tape measure No. 12935/3: L.3 m
1 LED torch No. 13128: L.130 mm
96831104, TCS 13214/1 WT/LM 5
1 Plastic scraper No. 10681: L.175 mm
1 plastic scraper No. 10680: L.174 mm
1 plastic scraper No. 10679: L.170 mm
1 plastic scraper No. 10678: L.170 mm
2 DRALL+ flat-blade screwdriver No. 4622: 1.0 x 5.5 X 100; 1.2 x 8.0 x 150 mm
3 PHILLIPS screwdriver No. 4632: PH1; PH2; PH3
1 Round awl No. 10758: L.280 mm
1 Hook tool No. 13001: 45 angled L.155 mm
1 Offset screwdriver set No. 10767/9: 1.5; 2; 2.5; 3; 4; 5; 6; 8; 10 mm
1 Split pin puller No. 13009: L.265 mm
96831105, TCS 13214/1 WT/LM 6
17 Combination spanners OPEN BOX no. 13: 5.5; 6; 7; 8; 9; 10; 12; 13; 14; 15; 17; 19; 20; 21; 22; 24; 27 mm
5 Combination spanners OPEN BOX no. 16: 3.2; 3.5; 4; 4.5; 5 mm

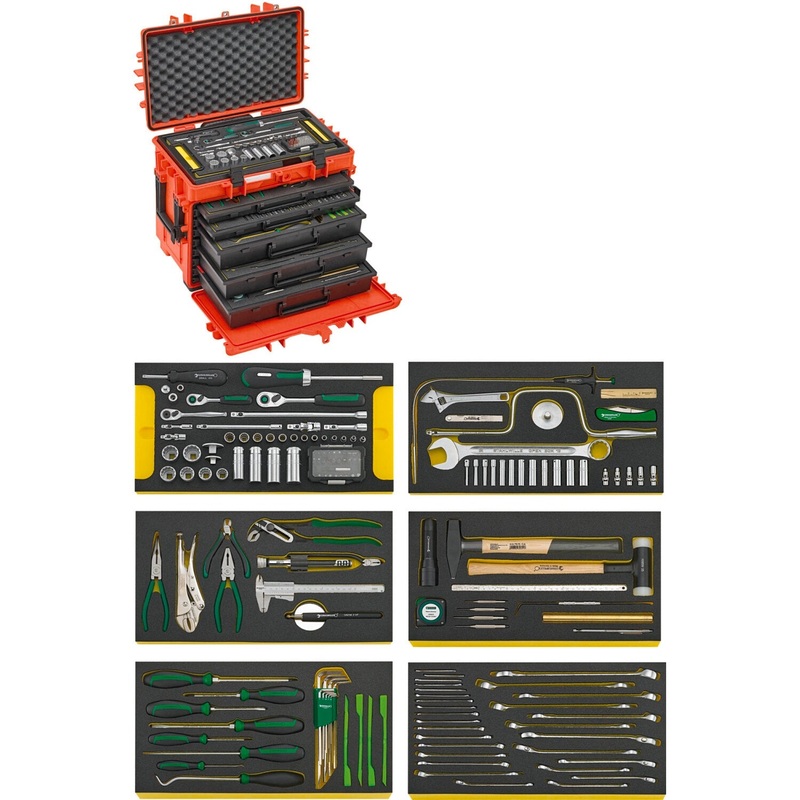

7 Ratchet combination spanners No. 17: 8; 9; 10; 12; 13; 17; 19 mmCountry of OriginGermanyUPC4018754335275California ResidentsProposition 65 WarningPart Number98814930Product TypeLine Maintenance set In tool trolleyReturn PolicyNCNR – Non-Cancellable / Non-ReturnablePhysical CharacteristicsLength381 mmWidth581 mmHeight455 mmWeight28.94 kg63.80 lbDetailsFeaturesFor maintenance on aircraft and helicopters
Extremely robust and resilient tool trolley Made of polypropylene for professional use
5 easily removable drawers with pull-out Stop in 2 different heights, closable with transparent lid
with one top and one front, removable lid
1 removable tray with 2 handles and 2 transparent drawer lids under the top lid
drawers can be used as a separate tool box due to transparent lid
2 easy-running double wheels on the telescopic handle
extendable telescopic handle and 2 side carrying handles
resistant to Skydrol, acetone, petrol and hydraulic oils
lockable by padlock in 3 positions
